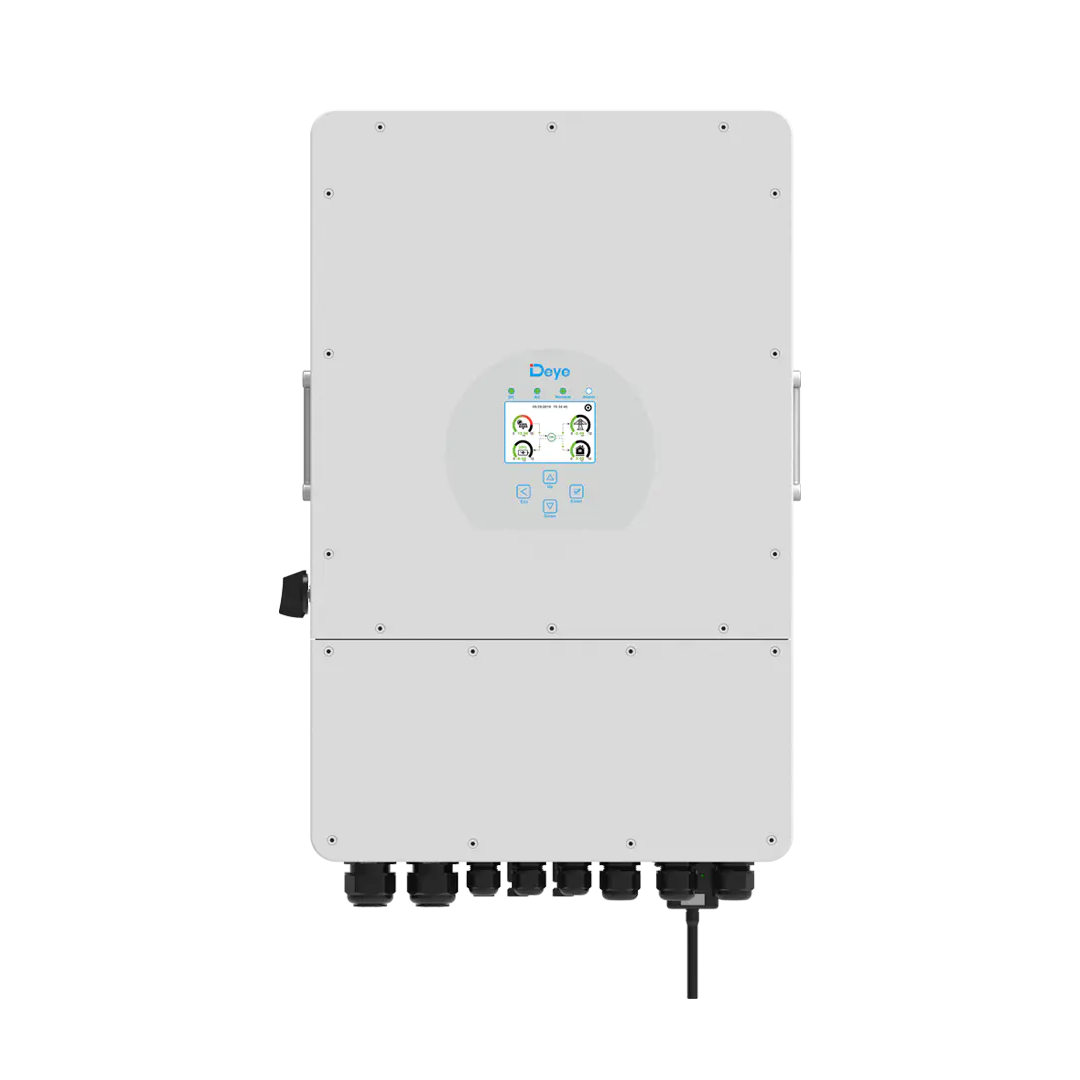

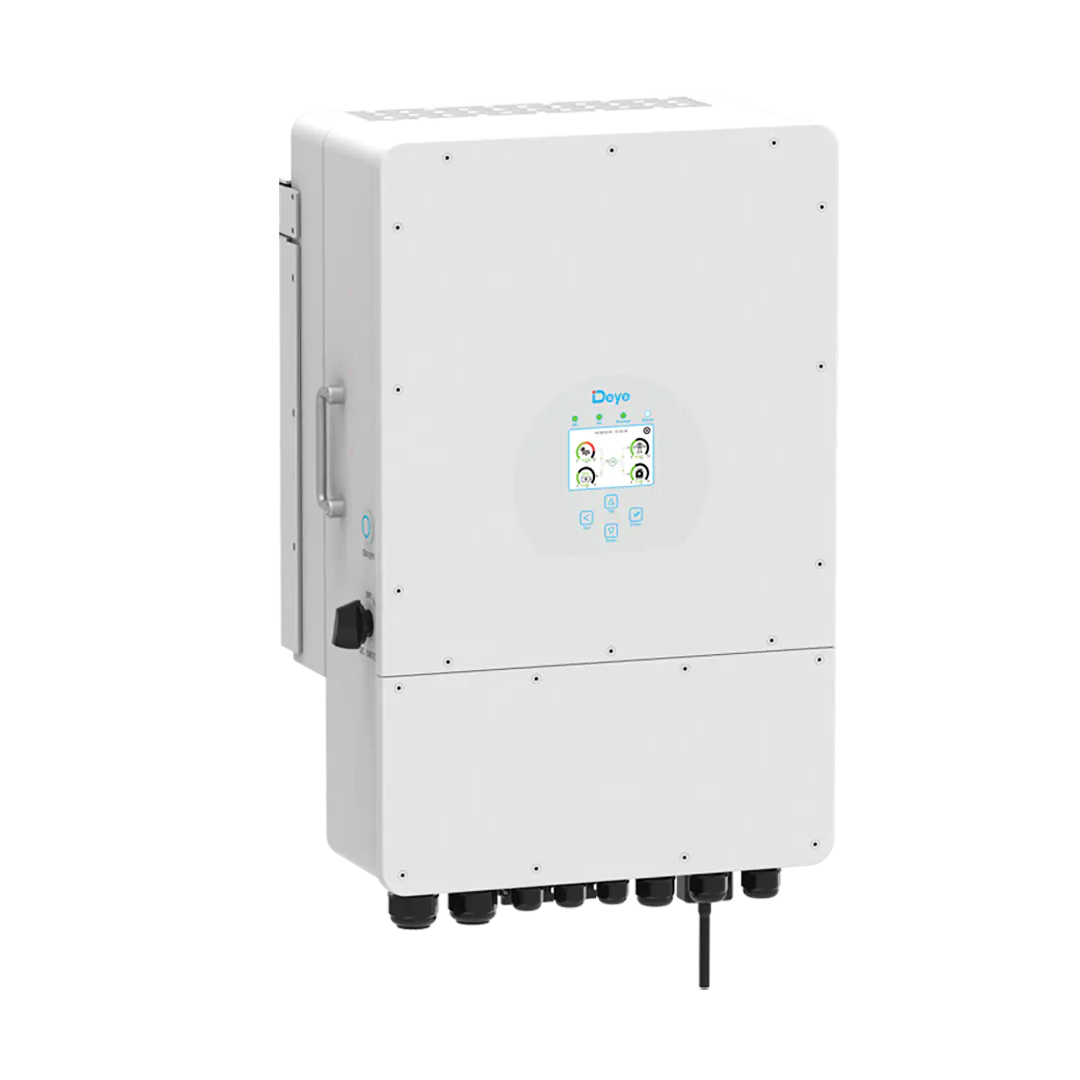

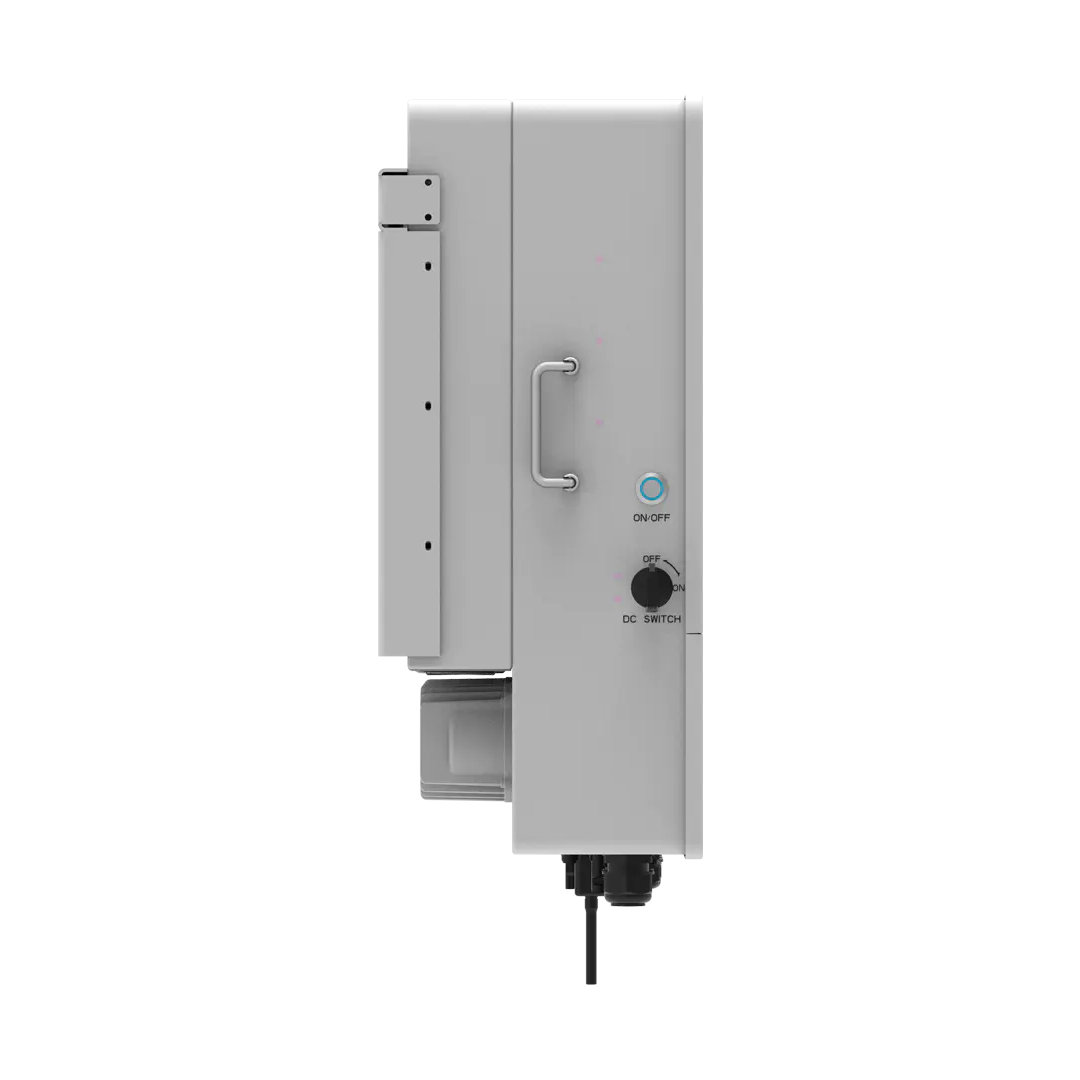

DEYE 12KW THREE PHASE HYBRID INVERTER
The Deye 12kW Three Phase Hybrid Inverter has a 48V low voltage battery, transformer isolation design, with a 100% unbalanced output, each phase, with a max. output up to 50% rated power. It is fitted with a DC couple and AC couple to retrofit existing solar systems, a max. 10pcs parallel for on-grid and off-grid operation as well as supports multiple batteries in parallel. It has a max. charging/discharging current of 240A as well as supports storing energy from diesel generator.
Product Specifications:
- Battery Type: Lead-acid or Li-lon
- Battery Voltage Range (V): 40~60
- Charging Current (A): 240A
- Charging Strategy for Li-Ion Battery: Self-adaption to BMS
- Grid Type: Three Phase
- Efficiency: 97.60%
- Operating Temperature Range (℃): -40~60℃, >45℃ derating
- Protection Degree: IP65
Description
The Deye 12kW Three Phase Hybrid Inverter has a 48V low voltage battery, transformer isolation design, with a 100% unbalanced output, each phase, with a max. output up to 50% rated power. It is fitted with a DC couple and AC couple to retrofit existing solar systems, a max. 10pcs parallel for on-grid and off-grid operation as well as supports multiple batteries in parallel. It has a max. charging/discharging current of 240A as well as supports storing energy from diesel generator.
Product Specifications:
- Battery Type: Lead-acid or Li-lon
- Battery Voltage Range (V): 40~60
- Charging Current (A): 240A
- Charging Strategy for Li-Ion Battery: Self-adaption to BMS
- Grid Type: Three Phase
- Efficiency: 97.60%
- Operating Temperature Range (℃): -40~60℃, >45℃ derating
- Protection Degree: IP65
