• Solar_Masters_SA_455W-PANEL-SIDE_514x514pxSolar_Masters_SA_455W-PANEL-BACK_514x514px

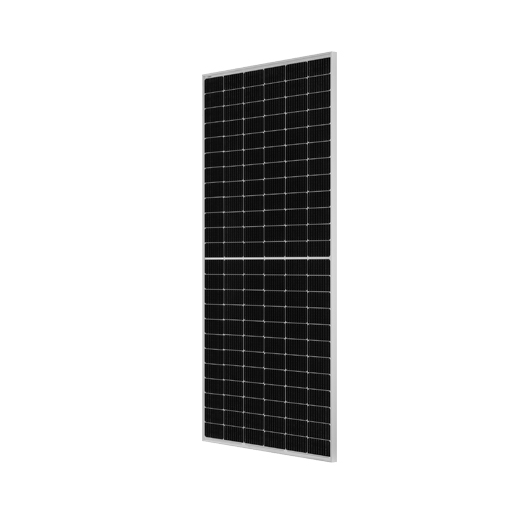

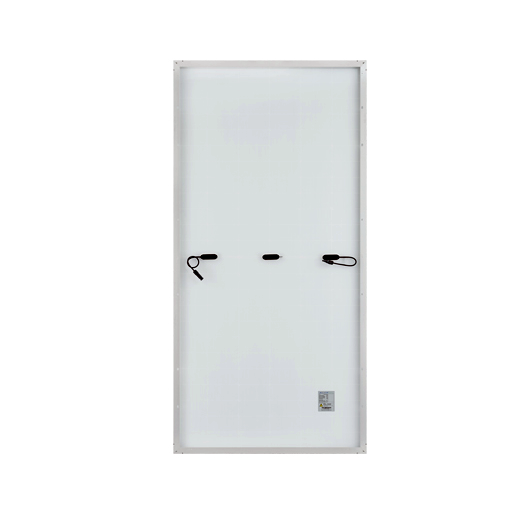

    JA SOLAR 455W PANEL – JAM72S20-455/MR

    The JA 455W is assembled with multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading. It has an all black design for improved aesthetics. The product has a 12-year warranty as well as a 25-year linear power output warranty.

    Product Specifications:

    • Cell – Mono
    • of cells: 144 (6X24)
    • Rated Maximum Power: (Pmax) 470W
    • Maximum Efficiency: 21.2%
    • Junction Box: IP68,3 diodes
    • Maximum System Voltage: 1000V/1500V DC
    • Operating Temperature: -40℃～+85℃
    • Connectors: MC4 EVO2/ QC4.10-35

    Download Datasheet

    Add to CartDone
  • Solar_Masters_SA_540W-PANEL-SIDE_514x514pxSolar_Masters_SA_540W-PANEL-FRONT_514x514px

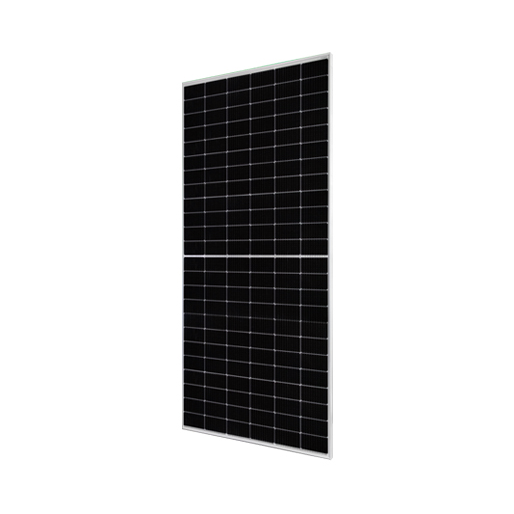

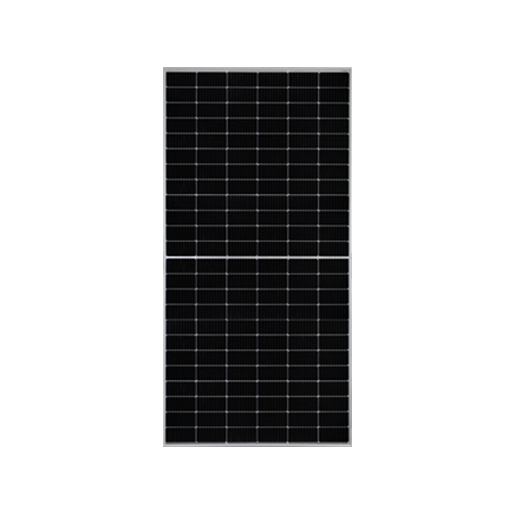

    JA SOLAR 540W PANEL – JAM72S30-540/MR

    The JA 540W is the latest in JA Solar’s 72 Cell range. This module with its 11Bus-bar half-cell configuration can reach up to a incredible power of 550Wp. It is assembled with multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading. This module is equipped with QC4.10 connectors. It has a 12-year product warranty as well as a 25-year linear power output warranty.

    Product Specifications:

    • Cell: Mono
    • of cells: 144 (6×24)
    • Rated Maximum Power: (Pmax) 555W
    • Maximum Efficiency: 21.5%
    • Junction Box: IP68,3 diodes
    • Maximum System Voltage: 1000V/1500V DC
    • Operating Temperature: -40℃～+85℃
    • Connectors: MC4 EVO2/ QC4.10-35

    Download Datasheet

    Add to CartDone
  • Solar_Masters_SA_540W-PANEL-SIDE_514x514pxSolar_Masters_SA_540W-PANEL-FRONT_514x514px

    JINKO SOLAR 470W PANEL – JKM470M

    R1,420.00

    The Jinko 470W Tiger Mono Facial solar panel is a 470W monocrystalline module with 156 cells from Jinko Solar, one of the world’s leading manufacturers of the photovoltaic industry. It’s TR technology and half-cell aims to eliminate the cell gap to increase module efficiency (mono-facial up to 21.6%). Jinko solar panels come with a 12-year product warranty and a 25-year linear power warranty.

    Product Specifications:

    • Cell Type: P type Mono-crystalline
    • of cells: 156 (2×78)
    • Dimensions: 2182×1029×40mm (85.91×40.51×1.57 inch)
    • Nominal Max. Power (Pmax): 470w
    • Operating Voltage (Vmp): 43.28V
    • Operating Current (Imp): 10.86A
    • Open Circuit Voltage (Voc): 52.14V
    • Short Circuit Current (Isc): 11.68A
    • Module Efficiency up to: 20.93%

    Download Datasheet
